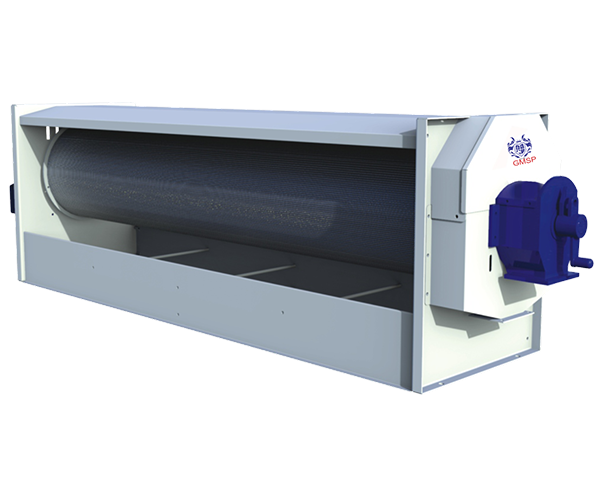

Rice Grader

These Machines are used for white grading and choiceness in the rice processing factory. Adopt the serial whole rice selecting technology, the extraction of whole rice are good. Adopt the equipage pattern of cooling rice and absorbing bran. These are some of salient effect such as cooling rice and absorbing bran. Set the knock down front board to convenient for cleaning the glume of rice bran.

The Gradegrainby differences in length with revolving cylinders indented to suit the particular grain. The indents vary from size #3.00- # 8.00 in accordance with the grain size.

GMSP Rice Length Grader

High accuracy sorting of head rice from the mixed normally after sifting.
Control of sorting accuracy bt v-shape tray inclination adjustment.

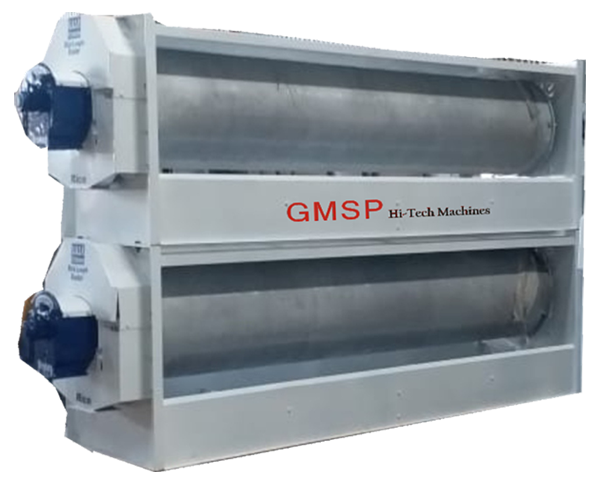

Need less space by stack installations of up to 4 machines.
Easy maintenance and minimum operation cost.

Process

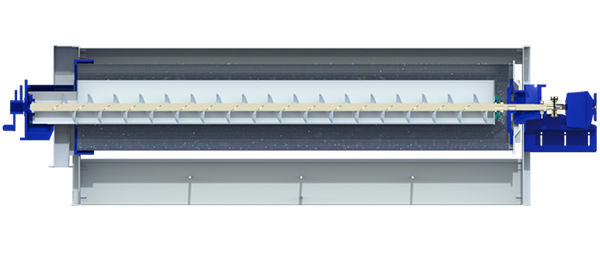

Grain enters the indent cyclinder at the feed inlet situated at the high end of the sloping cylinder.
The undersize grain is captured by the indents and is carried up as the cyclinder revolves until a point is reached where the grain is dislodged by gravity and is collected in a flared trough screw conveyor and discharged. The full grain remains in the bottom of cylinder and because of the inclination of the cylinder travels to a separate discharge outlet.

Model	RLG-100
Capacity	500 kg to 1 ton.
Electric Power	1 HP
Revolution	38-40 RPM
Dimension	LWH = 3573 x670 x815
Approx. Weight	320 kg

Features:

Uniform Speed Achieved by spatial Helical Gear Box Drive.
Single piece Dimple sheet screen drum for flawless grading.
Very Effective Grading of Raw and Parboiled Rice.
Good For the High broken input.
Easy to replace Sieve drum.
Wide Broken Collection Trey and inclination educator to set the output as desired.
Modular design for vertical stacking.
